Ventilation System Synthetic Air Pre Filter MERV 8 With Progressive Density

HVAC Panel Synthetic Fiber Pleated Filter Pre Filter For Ventilation System

Applications:

Pleated filter used as Prefilters in commercial and industial central air conditioning systems,Clean rooms and related industries.

Parameters:

• Media: Progressive density Synthetic fibre
• Frame: Water-resistance cardboard; GI; AI
• Efficiency: MERV 8 ASHRAE 52.2
• Average Arrestance: 80% @0.5μm;95%@0.5μm;
• Initial resistance: 45 Pa
• Recommended final pressure drop : 250Pa
• Humidity resistance: 90%RH
• Max Temperature: 80 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Media color available: Blue; White; Green
• Filter standard depth available 1 inch (21mm); 2 inch(46mm) and 4 inch(96mm)
• Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:

Competitive Advantage:

• Low maintained pressure drop for longer filter life
• High wet-strength beverage board frame creates a rigid and durable enclosure
• Welded wire media backing to maintain radial pleat configuration
• Available in 1", 2" and 4" depths
• Excellent choice for those who change filters based upon time or PM program

Product Picture:

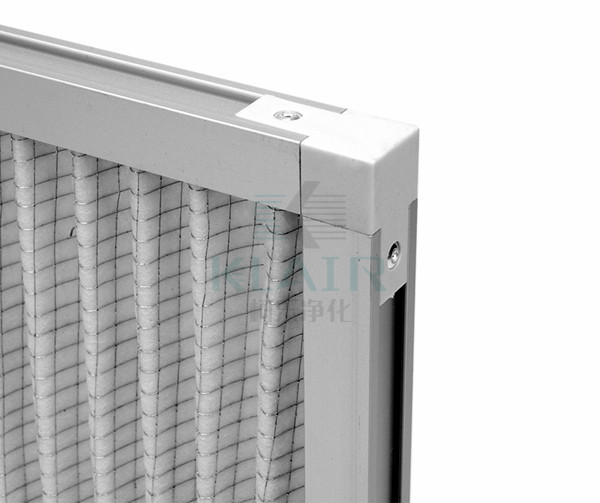

pleated panel filter

pleated panel air filters

Ventilation System Synthetic Air Pre Filter MERV 8 With Progressive Density Images
